Plane glass product for VELUX flat roof windows CVP Ideal for new VELUX flat roof windows or as replacement for existing domes Sleek, elegant design in glass and aluminium 4 mm toughened glass pane with silk screen printed rim Easy-to-clean coating on glass minimises cleaning frequency and gives a clearer view in case of rain Maintenance-free aluminium profiles VELUX plane glass product comes with gasket and all necessary screws and brackets
Clean water will normally be sufficient for cleaning the plane glass product. Ordinary, non-abrasive household cleaners can also be used.To clean the outer pane of the insulating glass unit, remove the plane glass product from the flat roof window.
(--93E) 4 mm toughened pane with easy-to-clean coating that provides significant rain noise reduction and excellent sound insulation.
Interior sun screening FMG electric operated pleated blind FMK electric operated light dimming pleated blind

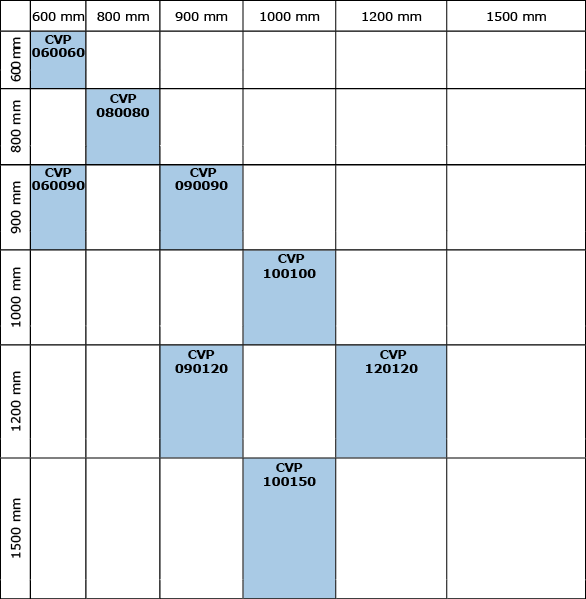

Size External profiles Silk screen print Outer glass Inner glass 060060 773 × 773 123.8 674.8 × 674.8 551 × 551 060090 773 × 1073 123.8 674.8 × 974.8 551 × 851 080080 973 × 973 123.8 874.8 × 874.8 751 × 751 090090 1073 × 1073 123.8 974.8 × 974.8 851 × 851 090120 1073 × 1373 123.8 974.8 × 1274.8 851 × 1151 100100 1173 × 1173 123.8 1074.8 × 1074.8 951 × 951 100150 1173 × 1673 123.8 1074.8 × 1574.8 951 × 1451 120120 1373 × 1373 123.8 1274.8 × 1274.8 1151 × 1151
Size Ventilation (m2) Effective daylight area (m2) 060060 0.12 0.19 060090 0.14 0.32 080080 0.16 0.40 090090 0.18 0.54 090120 0.20 0.76 100100 0.20 0.70 100150 0.23 1.18 120120 0.24 1.07
Pane variant Clear Opaque EN/ISO standard Thermal transmittance, Uw[W/m2K] 1.4 1.4 EN ISO 12567-2 Thermal transmittance for Dome 0.72 0.72 EN 1873 Sound insulation, Rw[dB] 36 36 EN ISO 10140-2 Rain noise sound intensity level LIA[dB] 51 51 EN ISO 140-18 Air permeability Class A3 Class A3 EN 12153 Luminous transmittance, τD65 0.70 0.21 EN 1873 Total solar energy transmittance, g 0.51 0.20 EN 410 Burglary Resistance Class 2 Class 2 EN 1627
