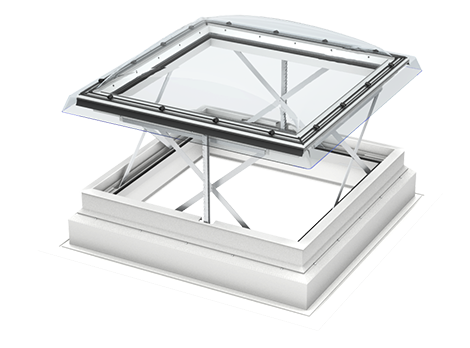

VELUX smoke vent dome

From xxxx€

The VELUX smoke vent dome is perfect for buildings that need to meet safety requirements while providing comfort for the building’s users. Typically used in stairwells and annex connections, it automatically opens in case of fire to release smoke and gasses from the building. Dome opens 50 cm within a minute.

Benefits

AA fire rated
Tested and certified to EN ISO 12101-2
Visually appears as standard VELUX flat roof windows

Prices and sizes > Link to configurator

Find dealer

See gallery

Product details

PVC

1 2 3

1

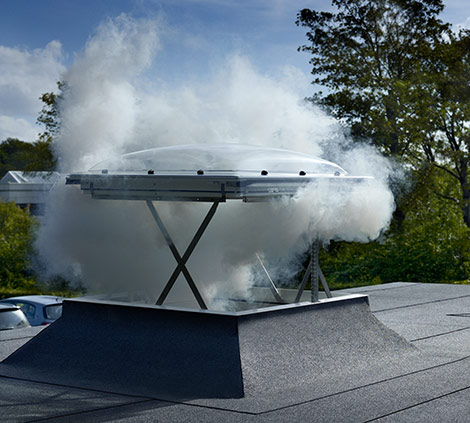

High smoke vent opening

High smoke vent opening

The VELUX smoke vent dome top opens all the way up to 50 cm to quickly release smoke and other harmful gasses in time-critical situations. Can also open up to approx. 15 cm for daily comfort ventilation.
2
Polycarbonate dome

Polycarbonate dome
Robust polycarbonate material used in the VELUX emergency exit dome is virtually impervious to damage from hail, ice pellets and other extreme weather.
3

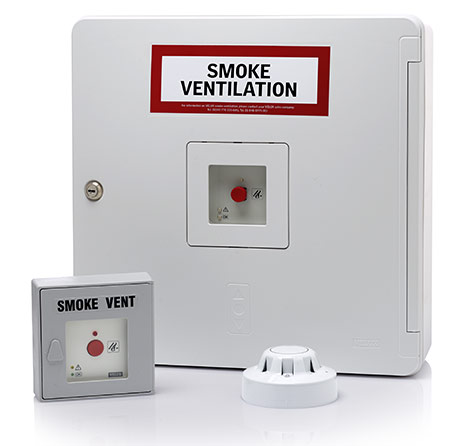

Control system

Control system
Opening system is connected to VELUX fire control system, which should be purchased separately. Choose from three different control systems that can control varying numbers of smoke vent windows and offer a smoke detector addition.

Materials

Internal finish

Maintenance-free PVC
Practical seamless design and use of PVC material helps keeps the internal finish clean.
External finish

Dome in opaque
For the most privacy.

Dome in transparent
For the most daylight.

External finish
Polycarbonate withstands impacts and fire.
Glazing performance

73 pane
Two-layer, low-energy pane with lamination on the inside and a 4 mm toughened pane with heat insulation.
Operation

Electric ventilation
Electric ventilation via fire control system

Download brochure

Open your flat roof to daylight and fresh air

A VELUX flat roof window solution is the perfect recipe for bringing plenty of daylight and fresh air into the very centre of your home. in contrast to facade windows that only light up the room perimeter a flat roof window can be positioned right on top of your favourite areas for work, rest and play.

The result is great indoor comfort with optimal daylight influx and great ventilation performance.
