Introduction
VELUX Solar INTEGRA® Electric powered roof window utilises the energy from the sun with a photovoltaic solar cell on the external window frame charging a high performance NiMH battery which provides the power for operation The centre-pivot window is a classic and versatile design manufactured in high quality natural pine with the option of white-painted or clear lacquered pine internal finish (GGL) or a white polyurethane internal finish (GGU). This requires direct exposure to sunlight. There is no need to plug into a power supply which makes installation even quicker and easier. It is suitable for installation into roof pitches between 15° and 90°.

VELUX Solar blinds can be fitted internally along with either Solar Awning blinds or Roller Shutters fitted externally and still be operated from the window Control Pad.

VELUX recommend that all roof windows including solar or electrically operated roof windows are installed with a laminated pane for instances above 2.20m.
Roof pitch
15o - 90o
Features
  • Ventilation bar with dust and insect filter – Allows fresh air to enter the room while the window is securely closed
  • Friction springs – Allows easy operation of window
  • Sash rotates 180° from inside – Allows easy and convenient cleaning
Operation
The Control Pad has a free field range of up to 300m, indoor range is 30m and will open the window up to 200mm. The window can also be manually opened and will centre-pivot to 180° for cleaning purposes. The Solar INTEGRA® Electric powered roof window has many functions.
Glazing
Glazing unit  Description
(--60) glazing
 Double glazed, laminated inner pane, toughened outer pane with easy-to-clean coating, enhanced noise reduction.
(--66) glazing  Triple glazed, laminated inner, toughened outer pane with easy-to-clean and anti-dew coating.
(--68) glazing  Triple glazed, laminated inner pane, toughened outer pane, anti-dew and heat strengthened coating.
(--70) glazing  Double glazed, laminated inner pane, toughened outer pane.
Maintenance
The pane should be cleaned with a soft, clean, lint-free cloth or non-abrasive sponge. The rest of the window can be cleaned with ordinary household cleaners. The filter can be removed and either washed or replaced.
Guarantee
  • 10 year VELUX guarantee on windows and flashing kits.
  • 3 year guarantee on blinds, shutters, awnings and electrics.
Interior finish
White-painted finish

High-quality pine wood with water-based long-lasting white paint with discrete wood grain. Perfect for almost all rooms.

White maintenance-free finish

Strong core of thermo-modified wood with a seamless waterresistant polyurethene coating. Perfect for high-moisture rooms and out-of-reach solutions.

Natural pine finish

High-quality pine wood with matte water-based transparent lacquer and visible wood grain. Fits wooden ceilings and wall.

Cladding
NCS standard colour (Grey): S 7500-N nearest RAL standard colour: 7043.

Also available: titanium zinc, copper or coloured aluminium.

Best practice installation
Installation products recommended by VELUX
Flashings
 Installation products
 Linings
Single installation (ED_)
Twin installation (EB_)
Combi installation (EK_)
 Insulation Collar (BDX)
Underfelt Collar (BFX) includes transverse drainage gutter
Vapour Barrier (BBX)
 Linings up to 30 cm roof thickness (LSB)
Linings up to 40 cm roof thickness (LSC)
Linings up to 50 cm roof thickness (LSD)
Blinds, Awnings/Shutters
Interior sunscreening  Awning and shutters
Blackout blind - Solar (DSL)
Roller blind - Solar (RSL)
Pleated blind - Solar (FSL)
Light dimming energy blind - Solar (FSC)		 Awning blind - Solar (MSL)
Roller shutter - Solar (SSL)
Technical Data

Please note, not all glazing variants are available in all sizes.

Size  Window Options Exterior Frame
W x H		 Visible Glass
e x f		 Lining Rebate
k x l
BK04  GGL 472 x 978
 293 x 783  417 x 639
CK02  GGL, GGU  550 x 778  371 x 583  495 x 719
CK04  GGL, GGU  550 x 978
 371 x 783  495 x 919
CK06  GGL, GGU  550 x 1178  371 x 983  495 x 1119
FK04  GGL, GGU  660 x 978  481 x 783  495 x 919
FK06  GGL, GGU  660 x 1178  481 x 983  605 x 1119
FK08  GGL, GGU  660 x 1398  481 x 1183  605 x 1339
MK04  GGL, GGU  780 x 978  601 x 783  725 x 565
MK06  GGL, GGU  780 x 1178  601 x 983  725 x 1119
MK08  GGL, GGU  780 x 1398  601 x 1203  725 x 1339
MK10  GGL, GGU  780 x 1600  601 x 1405  725 x 1541
PK04  GGL, GGU  942 x 978  763 x 783  887 x 919
PK06  GGL, GGU  942 x 1178  763 x 983  887 x 1119
PK08  GGL, GGU  942 x 1398  763 x 1203  887 x 1319
PK10  GGL, GGU  942 x 1600  763 x 1405  887 x 1541
SK06  GGL, GGU  1140 x 1178  961 x 983  1085 x 1119
SK08  GGL, GGU  1140 x 1398  961 x 1203  1085 x 1339
SK10  GGL  1140 x 1600  961 x 1203  1085 x 1119
UK04  GGL, GGU  1340 x 978  1161 x 783  1285 x 919
UK08  GGL, GGU  1340 x 1398  1161 x 1203  1285 x 1339
UK10  GGL  1340 x 1600  1161 x 1405  1285 x 1541
Cross section/
measurements (mm)

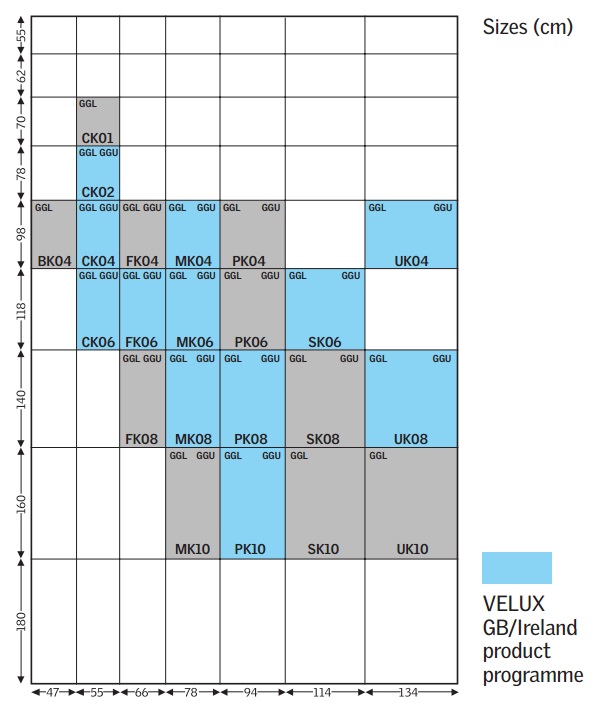

Size chart
Technical Data

Ventilation and daylight area

Size  Ventilation flap – free area [10^3mm²]*
 Ventilation flap – equivalent area [10^3mm²]*
 Ventilation – open window manual [m²]*
 Effective daylight area [m²]
BK04  tbd tbd 0.17 0.29
CK02  tbd tbd 0.10 0.22
CK04  tbd tbd 0.20 0.29
CK06 tbd tbd 0.20 0.37
FK04 tbd tbd 0.24 0.38
FK06  tbd tbd 0.24 0.47
FK08  tbd tbd 0.24 0.58
MK04  tbd tbd 0.28 0.47
MK06  tbd tbd 0.28 0.59
MK08  tbd tbd 0.28 0.72
MK10  tbd tbd 0.28 0.85
PK04  tbd tbd 0.33 0.60
PK06  tbd tbd 0.33 0.75
PK08  tbd tbd 0.33  0.92
PK10  tbd tbd 0.34 1.07
SK06  tbd tbd 0.34 0.95
SK08  tbd tbd 0.39 1.16
SK10  tbd tbd 0.40 1.35
UK04  tbd tbd 0.47 0.91
UK08  tbd tbd 0.46 1.40
UK10  tbd tbd 0.46 1.63

*Measured to EN 13141-1

Technical data

Glazing

 Pane variant --60 --66 --68 --70  EN/ISO Standard
Thermal transmittance, Uw [W/m2K]
 1.3 1.0 1.1 1.3 EN ISO 12567-2
Thermal transmittance, Ug [W/m2K]
 1.0 0.5 0.5 1.0 EN 673
Sound insulation, Rw [dB]
 37 37 35 35 EN ISO 10140-2
Air permeability
 Class 4 Class 4 Class 4 Class 4 EN 1026
Light transmittance, Tv  0.62 0.71 0.72 0.68 EN 410
Total solar energy transmittance, g  0.30 0.51 0.52 0.46 EN 410
