Introduction
The CABRIO® roof balcony window can be used on its own in roof pitches 35°and 53°. It can also be used, to great effect, in conjunction with a combination comprising GPL top-hung and GIL fixed lower window elements.
Roof pitch

35o - 53o

Features

The CABRIO is available in 3 options, single, double or triple

  • Single CABRIO consists of:
    • Top section
    • Bottom section
  • Optional one or two side units can be added to make the double or triple system
  • Toughened outer pane with easy-to-clean and anti-dew coating and laminated inner pane
  • Supplied as a complete unit including flashings (support timmers included with combination packages)
Benefits
  • Offering the customer more options depending on their requirements:
    • The upper section is a top-hung roof window which opens outwards
    • The lower section unfolds into a glazed balcony with side railing
  • Offering more choice dependant upon space and personal requirements
  • Safety glazing to suit building regulation requirements
  • Convenient to order as complete packages
Operation
The window is operated manually. The upper section which is top-hung is opened and closed using the bottom handle and can remain open in any position up to 45o. The lower section which is bottom-hung is opened and closed using the handles on the top sash.
Glazing
Glazing unit  Description
(--66)  Triple glazed, laminated inner, toughened outer pane with easy-to-clean and anti-dew coating.
Maintenance
The pane should be cleaned with a soft, clean, lint-free cloth or non-abrasive sponge. The rest of the window can be cleaned with ordinary household cleaners. The filter can be removed and either washed or replaced.
Guarantee
  • 10 year VELUX guarantee on windows and flashing kits.
  • 3 year guarantee on blinds, shutters, awnings and electrics.
Interior finish
White-painted finish

High-quality pine wood with water-based long-lasting white paint with discrete wood grain. Perfect for almost all rooms.

Natural pine finish

High-quality pine wood with matte water-based transparent lacquer and visible wood grain. Fits wooden ceilings and wall.

Cladding
NCS standard colour (Grey): S 7500-N nearest RAL standard colour: 7043.

Also available: titanium zinc, copper or coloured aluminium.

Installation products recommended by VELUX
Flashings
 Installation products
 Linings
Single installation (ED_)
Twin installation (EB_)
Combi installation (EK_)
 Insulation Collar (BDX)
Underfelt Collar (BFX) includes transverse drainage gutter
Vapour Barrier (BBX)
 Linings up to 30 cm roof thickness (LSB)
Linings up to 40 cm roof thickness (LSC)
Linings up to 50 cm roof thickness (LSD)
Blinds, Awnings/Shutters
Interior sunscreening  Awning and shutters
Blackout blind – Manual (DKL)
Roller blind - Manual (RFL)
Roller blind - Manual (RHL)
Flying pleated blind - Manual (FHL)
Venetian blind – Manual (PAL)
Blackout energy blind - Manual (FHC)
Roman blind - Manual (FHB)
Blackout blind - Solar (DSL)
Roller blind - Solar (RSL)
Light dimming energy blind - Solar (FSC)
Pleated blind - Solar (FSL)		 Awning blind - Manual (MHL)
For top element only

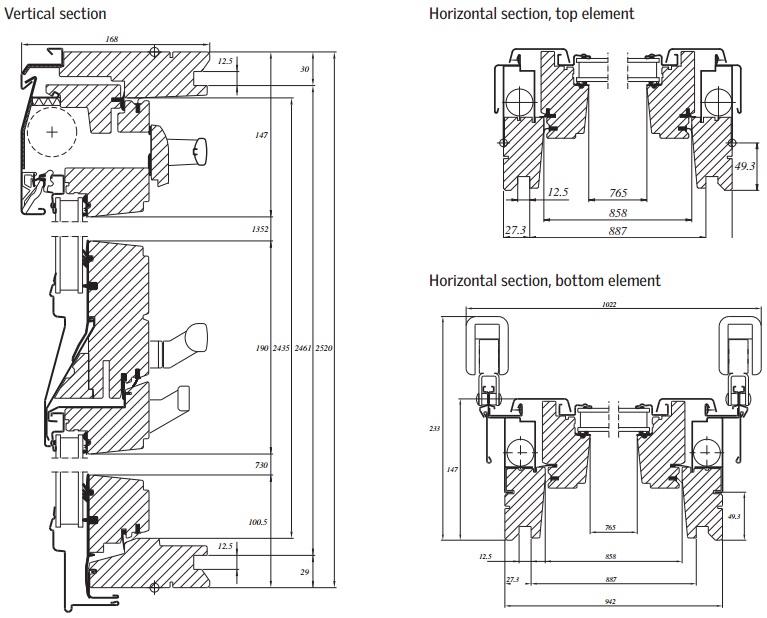

Cross section/
measurements (mm)

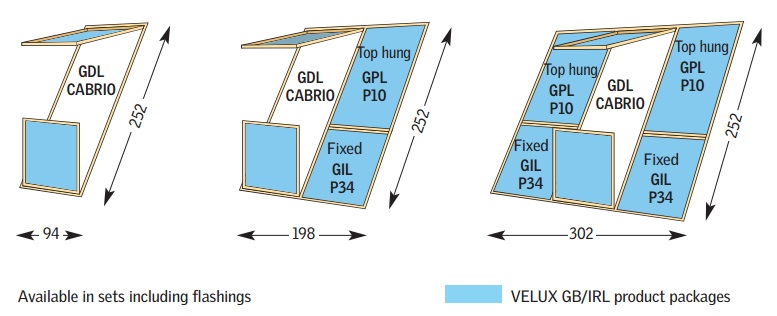

Sizes (cm)

Technical Data

Ventilation and daylight area

Size  Ventilation flap – free area [103mm²]*
 Ventilation flap – equivalent area [103mm²]*
 Ventilation – open window manual [m²]*
 Effective daylight area [m²]
PK19  6.1 4.6 2.09 1.59
PK10  6.1 4.6 1.30 1.07
PK34  - 4.6 0.26 0.56

*Measured to EN 13141-1

Technical data

Glazing

 Pane variant --66  EN/ISO Standard
Thermal transmittance, Uw [W/m2K]
 1.2 EN ISO 12567-2
Thermal transmittance, Ug [W/m2K]
 0.5 EN 673
Sound insulation, Rw [dB]
 37 EN ISO 10140-2
Air permeability
 Class 3 EN 1026
Light transmittance, Tv  0.71 EN 410
Total solar energy transmittance, g  0.51 EN 410
